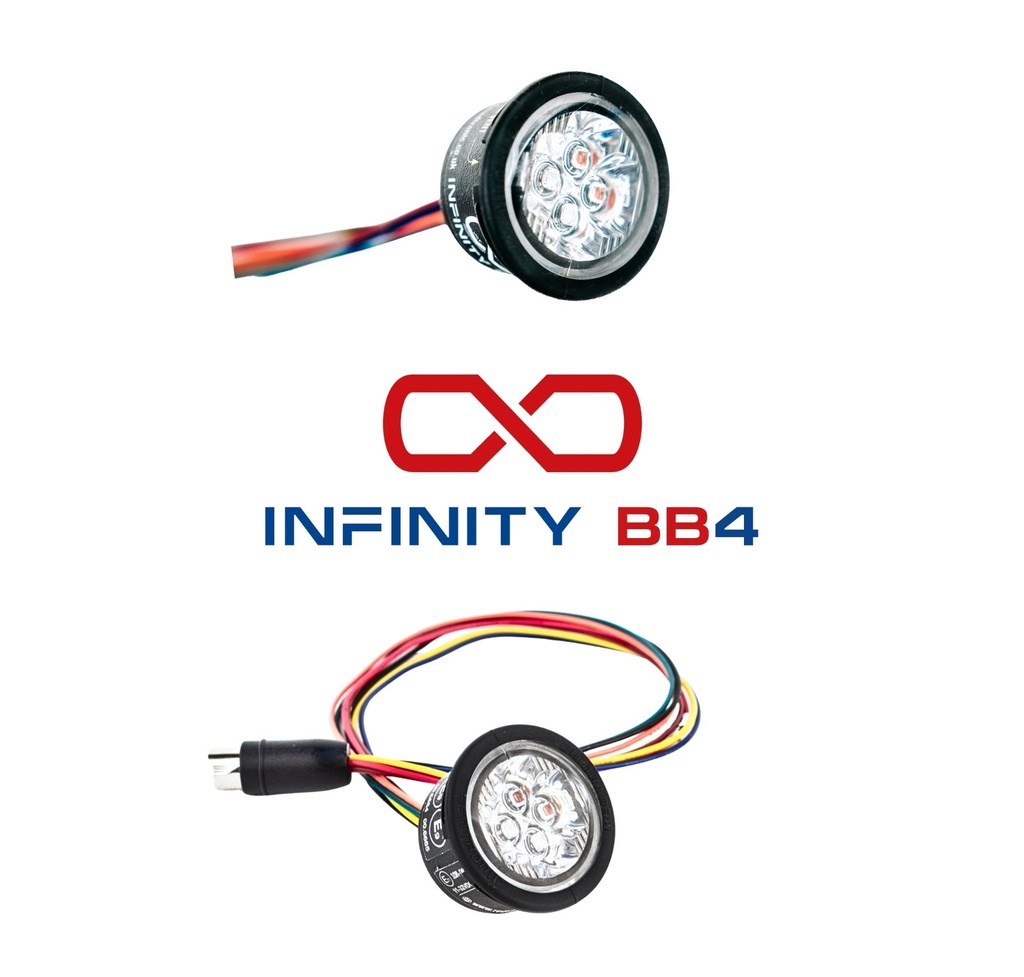

Infinity BB4

Round, recessed directional with all electronics inside the body: a clean fit in bumper or bodywork.

Cast aluminium housing, black powder coated
Single or dual colour
Optional 25°, 60° or 90° shrouds for glass or angled surfaces
IP69K, ECE R65 Class I (amber and blue)
Only 30 g

Technical data

Dimensions	28.50mm (diameter) x 22.08mm (depth) (34mm when mounted in grommet) – hole size required 32mm for grommet
Weight (product)	30 g
Voltage	11-32VDC
Current draw	630mA @12V, 315mA @24V
Power	8 watt
Flash patterns	7 Flash Patterns; Quad, Triple, Double, Single, Quad/single, Quad/triple/double/single + CAP168
Light output	Lumens: Amber 457lm, Blue 317lm
ECE R65	Class I (Amber, Blue)
EMC / ECE R10	EMC/R10 Compliant
IP rating	IP69K
Mounting	Push Fit Grommet with Double Lock Feature; Optional Shrouds/Pods (SP_BB4SHROUD25 designed for front windows and SP_BB4SHROUD60 for the rear)
Connection / cable	Hard-wired
Operating temperature	-40°C / +105°C
Lens / material	Ultra-strong UV stabilised polycarbonate lens (Makrolon 2407 PC)
Warranty	3 Year Warranty
Optional Shroud	No Shroud, Yes (+SP_BB4SHROUDS60), Yes (+SP_BB4SHROUDS25), Yes (+SP_BB4SHROUDS90)
Models	DIFX-004-BC (Blue), DIFX-004-AC (Amber), DIFX-004-RC (Red), DIFX-004-WC (White), DIFX-004-BAC (Dual Blue Amber), DIFX-004-BRC (Dual Blue Red), DIFX-004-BWC (Dual Blue White), DIFX-004-ARC (Dual Amber Red), DIFX-004-GC (Green)

79.00 €

Model number
Optional cover

Add to wishlist

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Model number	DIFX-004-BC (Blue), DIFX-004-AC (Amber), DIFX-004-RC (Red), DIFX-004-WC (White), DIFX-004-BAC (Dual Blue Amber), DIFX-004-BRC (Dual Blue Red), DIFX-004-BWC (Dual Blue White), DIFX-004-ARC (Dual Amber Red), DIFX-004-GC (Green)
Optional cover	No Shroud, Yes (+SP_BB4SHROUDS60), Yes (+SP_BB4SHROUDS25), Yes (+SP_BB4SHROUDS90)
